Calentadores de Vapor

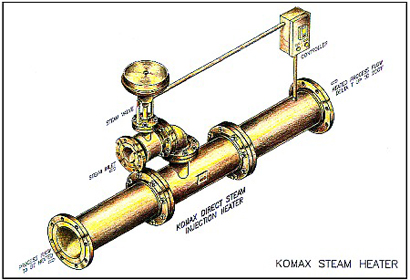

Direct Injection Steam Heater

[Descripción General|Especificaciones Detalladas]

Descripción General

High heating efficiency - close to 100% - low capital cost, phenomenally reduced noise, water hammer, and vibration all combine to make the Komax Direct Injector Steam Heater a breakthrough in technology. The "STM" unit is used by the pulp and paper industry for heating water, starches, liquors, and pulp stock up to 15% consistency. Available from 2" through 24" NPS in carbon steel, 316L, or 317L stainless steel construction.


Especificaciones Detalladas


99% to 100% Efficiency.
20% to 25% more efficient than heat exchangers.
Low capital cost.
Dramatically reduced noise.
Dramatically reduced water hammer.
Dramatically reduced vibration.
Dramatically reduces scaling.
Komax Direct Injector Steam Heater, a breakthrough in heating and mixing technology.


Komax steam heater models have been successfully installed in oil refineries, large industrial buildings for the general heating of water, food processing plants for the heating of slurries, pulp and paper mills for the heating of paper pulp stock streams.

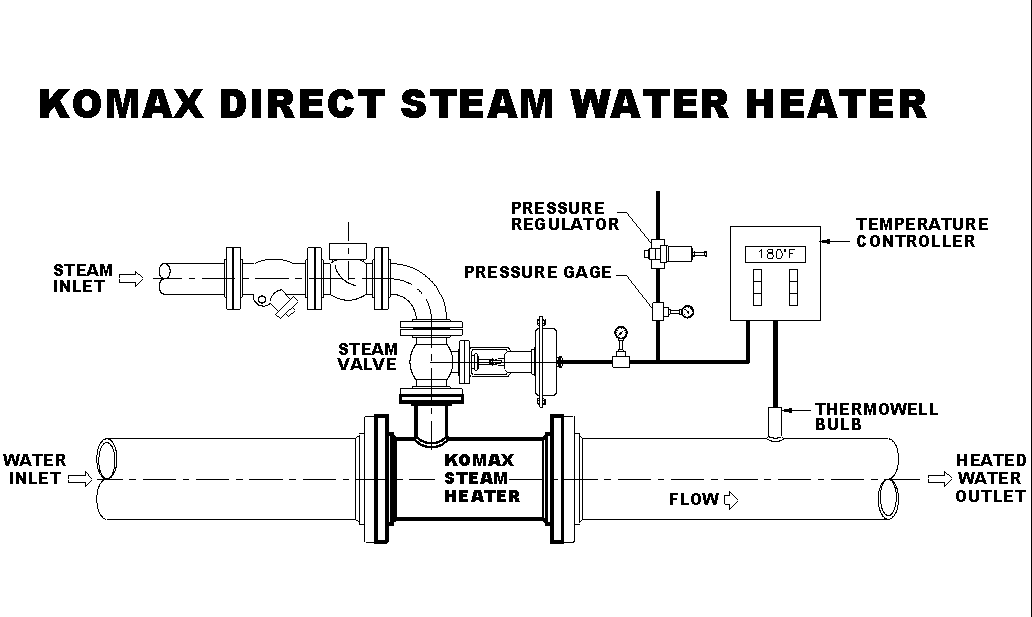

Instant Hot Water by Direct Steam Injection

Komax Systems' direct injection steam heaters provide large or small volumes of hot water with very precise temperature settings. The very compact inline flanged steam heaters are the same diameter as the incoming cold water feed line. They are 30% more energy efficient then indirect systems, heat exchangers or heat coils in hot water supply tanks, and provide an unlimited supply of hot water instantly.

Unlike earlier designs, our direct injection steam heaters have no moving parts. The steam and cold water are instantly mixed together by our unique internal static mixer. The six radially chambered static mixing elements produce and mix very fine steam bubbles into the water stream. This design, using no moving parts, provides a very low noise direct steam heater with no vibration or water hammer. With a single modulating steam control valve the Komax direct steam heater provides better then a 10:1 turndown capability.

Demand for hot water may vary from no flow to maximum flow. Even with varying water pressures the direct steam heater will produce hot water at a precise temperature. A temperature controller actuates the steam control valve. The controller may be manually set to any desired outlet temperature or may be electronically controlled. Komax direct steam hot water heaters are offered in sizes from 30 gpm to 10,000 gpm.

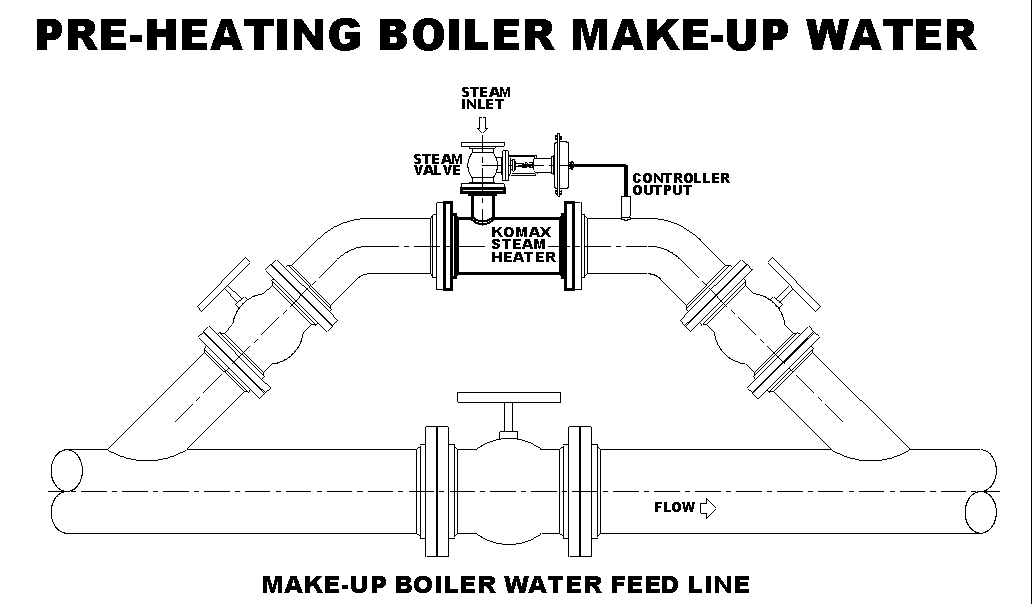

Preheating high-pressure industrial boiler make-up water with turbine discharge steam results in higher operating efficiency and reduces energy costs.

Komax direct injection steam heaters are less costly than heat exchangers and are easier to install and operate. Komax steam heaters require less space. The heater fits easily into the existing pipeline requiring only a steam supply. Unlike earlier direct injection steam heaters the Komax heaters have no moving parts.


The flanged in-line direct steam heaters are offered in varying sizes for heating a percentage or the total flow of boiler make-up water. Shown in the drawing below is a low cost effective method. By directly heating a percentage of the total make up water flow, the boiler will receive a constant flow of pre-heated water when the two input streams are blended.

All are available through 24" NPS in carbon steel, 316L, or 317L stainless steel construction.
